Project: The Curve
For our university project we had to design a validation tool for Trace Elemental Instruments, a company based in Delft, The Netherlands.
Concept to final design

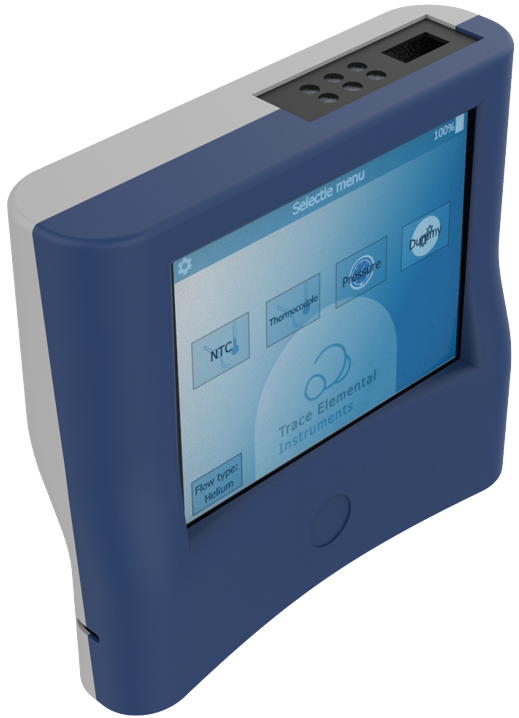

Above the chosen concept is displayed, after performing different tests using prototypes we made small adjustments to the concept to improve mainly ergonomics and user friendliness of the UI.

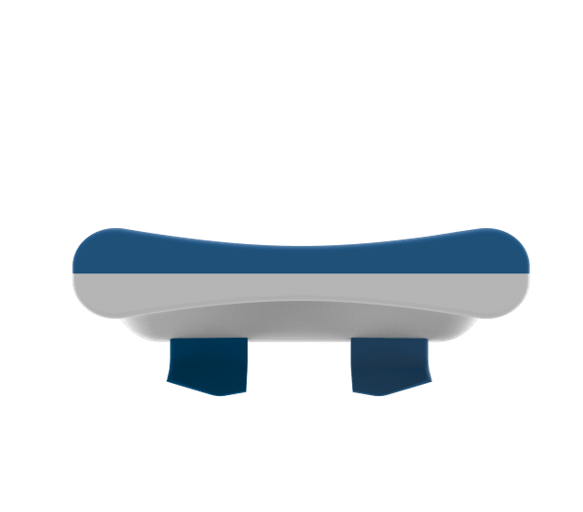

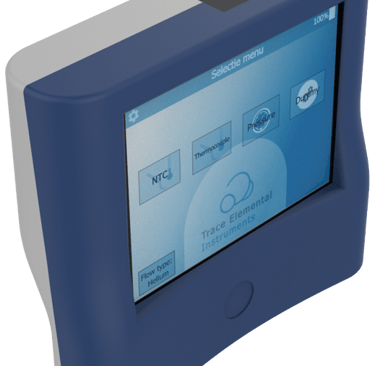

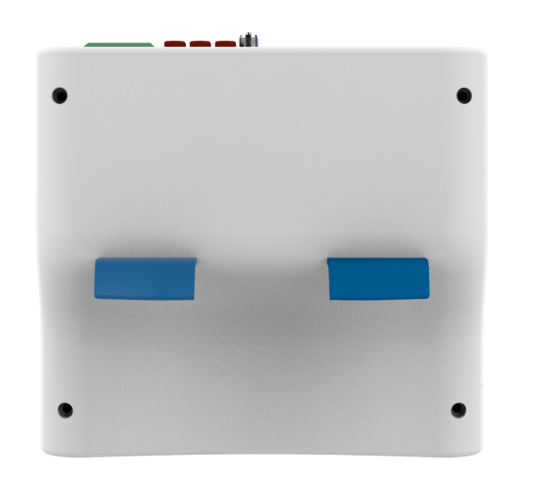

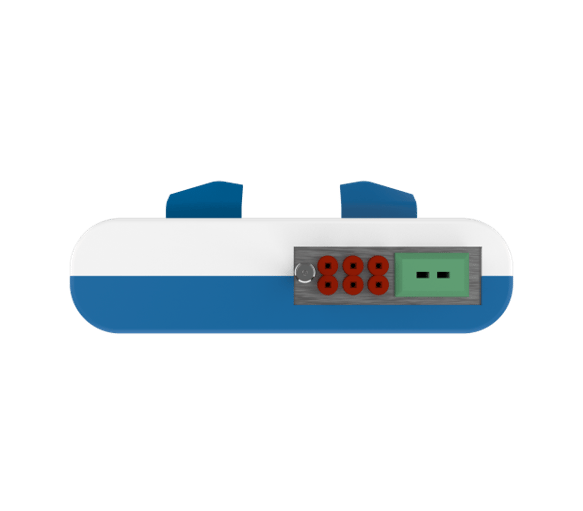

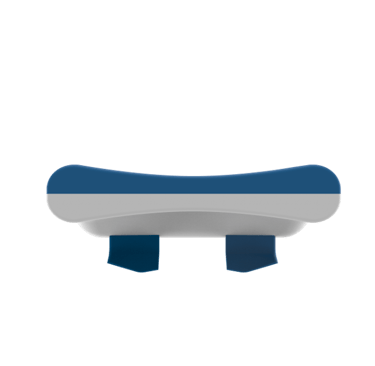

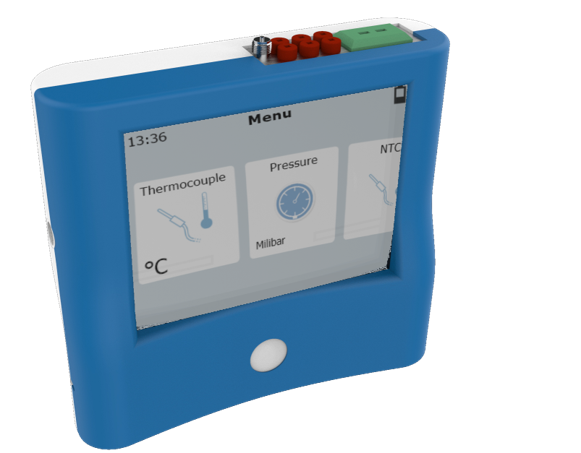

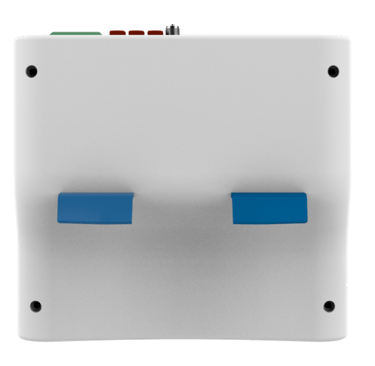

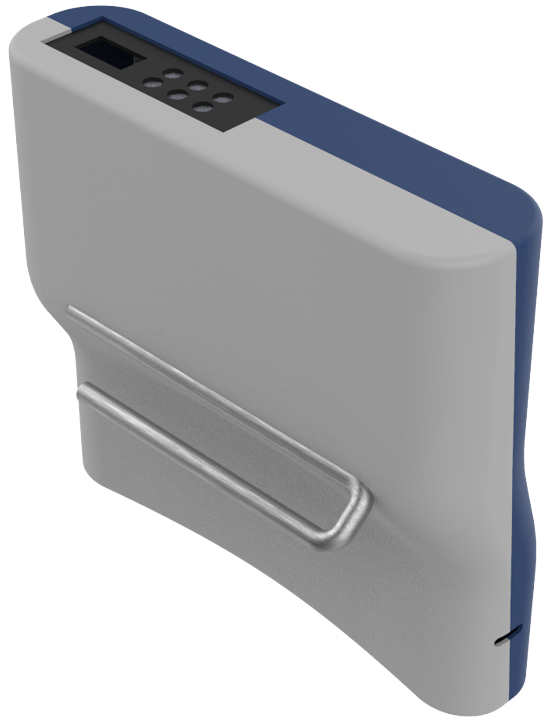

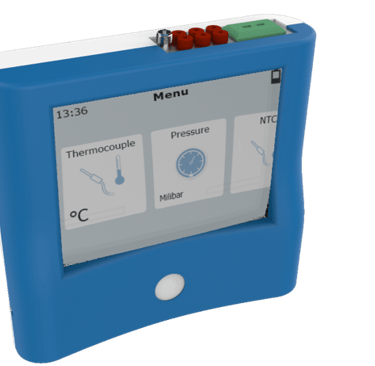

Following images are renders of the final design from different angles.

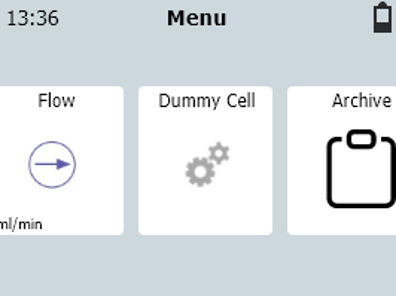

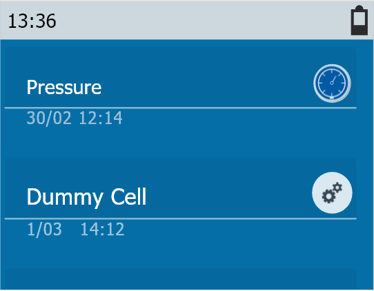

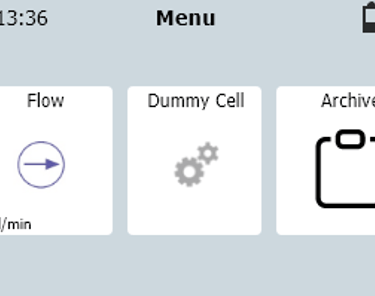

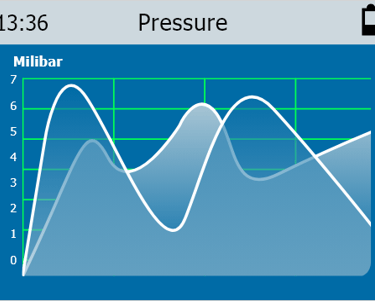

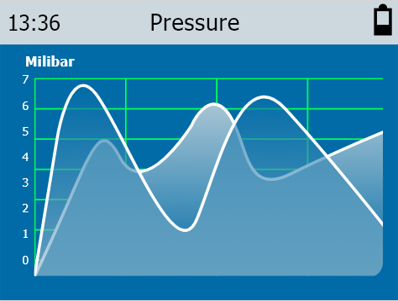

User interface

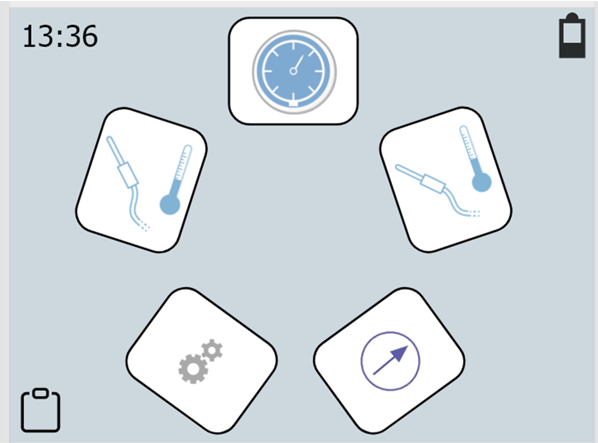

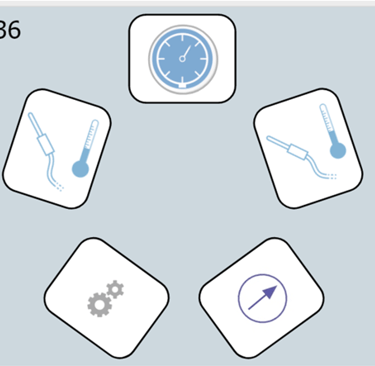

To test the user interface we uploaded a demo of the software on a mobile phone, we used this demo version to test the software and perform a user-test in which we had different test subjects navigate the demo app.
